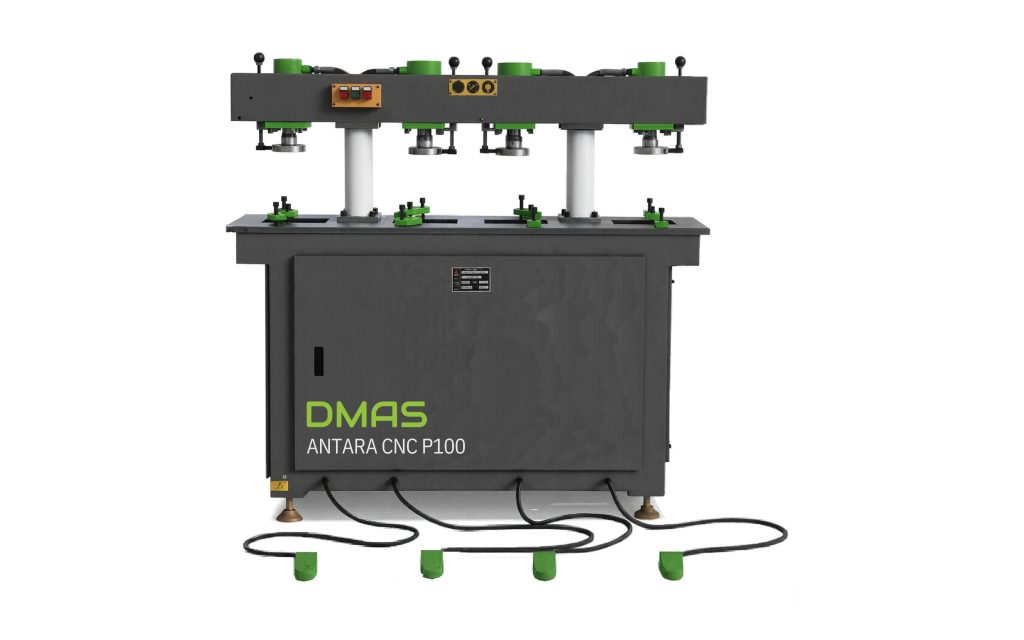

ANTARA CNC P100

The DMAS Combination Punching Machine is designed for high-precision punching, notching, and shaping of aluminum profiles used in doors, windows, façades, and curtain wall systems.

Engineered for speed, accuracy, and versatility, it integrates multiple punching operations into a single, compact, and efficient system. Equipped with a servo-driven control system and high-strength interchangeable dies, the machine allows seamless adaptation to various profile designs while maintaining consistent punching depth and alignment.

Its multi-station configuration supports simultaneous or sequential operations, significantly reducing setup time and enhancing production efficiency

Find out More

ANTARA CNC P100

Item

Specification
Power Supply380V / 50Hz
Input Power3.0 kW
Press Nominal Pressure100 kN
Oil Cylinder Capacity50 L
Interval of Equipment af Mould4
Punching Travel60 mm
Overall Dimension (L × W × H)1300 × 730 × 1280 mm
Weight400 kg

Technical Features

High Punching Force

Delivers a nominal pressure of 100 kN, ensuring clean and accurate punching of thick aluminum and steel profiles.

Stable Hydraulic System

Equipped with a 50 L oil cylinder for consistent power output and smooth operation under continuous workloads.

Optimized Working Stroke

Provides a 60 mm punching travel, ideal for deep and precise forming operations.

Multi-Mould Capability

Supports up to 4 mould positions, allowing quick changeover between different punching patterns and profiles.

Compact Footprint

Space-efficient design with overall dimensions of 1280 × 730 × 1300 mm, suitable for workshop integration and assembly-line setups.

User-Friendly Interface

Simple hydraulic control system enables fast operation and easy maintenance.

Energy Efficient

Operates with 3.0 kW input power, combining high productivity with low energy consumption.

Safety Focused

Incorporates protective guards and emergency stop system for operator protection during punching operations.
