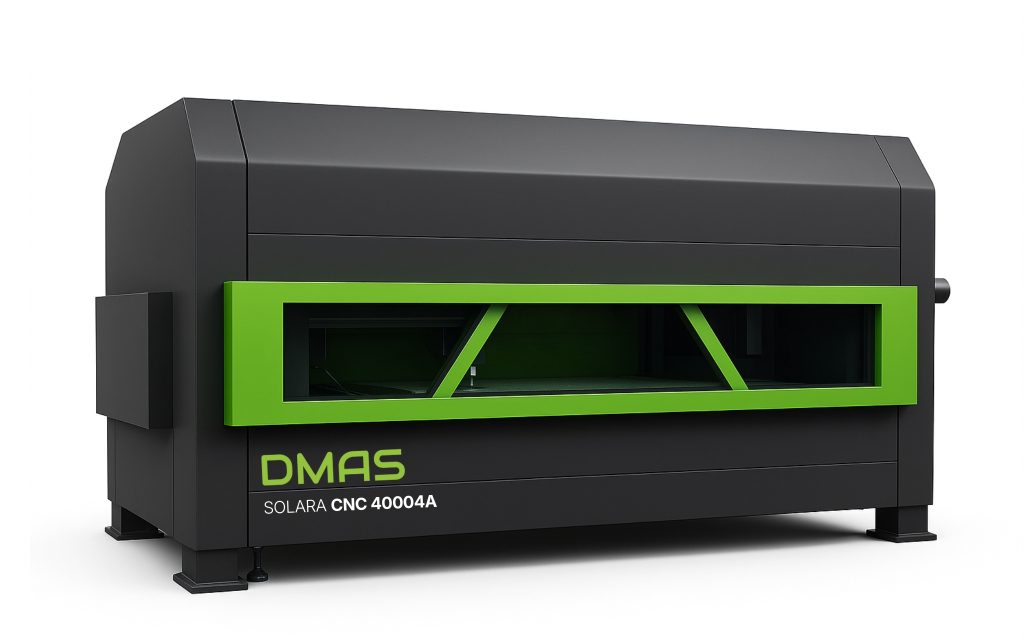

This advanced 4-Axis CNC machining center is engineered for high-precision processing of aluminum profiles, offering a wide range of operations including drilling (round, slotted, key, and special-shaped holes), milling, chamfering, and plane engraving.
Powered by an intelligent CNC control system, it ensures precise tool positioning, stable motion, and repeatable accuracy across all axes. The user-friendly interface enables easy programming and automatic toolpath optimization, minimizing setup time and enhancing production efficiency.
Built for dimensional accuracy and superior surface finish, this machine is ideal for manufacturing high-quality components used in doors and windows, curtain walls, rail transit systems, and industrial aluminum structures. With its blend of speed, stability, and smart control, it delivers a reliable solution for modern aluminum processing lines.
Item |
Specification |
|---|---|
| X-Axis Travel | 4000 mm |
| Y-Axis Travel | 515 mm |
| Z-Axis Travel | 410 mm |
| Main Axis Revolution | 24,000 r/min |
| Main Axis Power | 9.5 kW |
| X-Axis Speed | 0 – 40 m/min |
| Y-Axis Speed | 0 – 30 m/min |
| Z-Axis Speed | 0 – 30 m/min |
| X-Axis Locating Accuracy | ±0.1 mm |
| Y-Axis Locating Accuracy | ±0.1 mm |
| Z-Axis Locating Accuracy | ±0.1 mm |
| Repeat Locating Precision | ±0.02 mm |
| Surface Roughness | Ra 6.3 μm |
| Power Supply | 380 V / 50 Hz |
| Total Power of Machine | 15 kW |
| Working Air Pressure | 0.5 – 0.8 MPa |
| Overall Dimensions (L × W × H) | 5300 × 2300 × 2300 mm |
Designed for precision milling of holes, grooves, and complex contours on aluminum profiles, allowing multiple surfaces to be processed efficiently in a single setup.
Equipped with an intelligent numerical control system and an intuitive human–machine interface, providing simple operation and fast, accurate adjustments.
Integrated multi-station tool magazine ensures uninterrupted production and enables rapid automatic tool changes during machining cycles.
Features a high-speed, tool-changeable electric spindle with low noise, excellent stability, and strong cutting capability, automatically selecting tools according to processing requirements.
Built with precision linear guides, ball screws, and gear rack drive to guarantee smooth motion, accurate positioning, and consistent machining performance.
The fixture system automatically adapts to the profile’s length and machining position, intelligently avoiding spindle interference to prevent collision.
A servo-controlled rotary table allows flexible positioning at any angle, enabling multi-surface milling in a single clamping operation for superior efficiency and precision.
