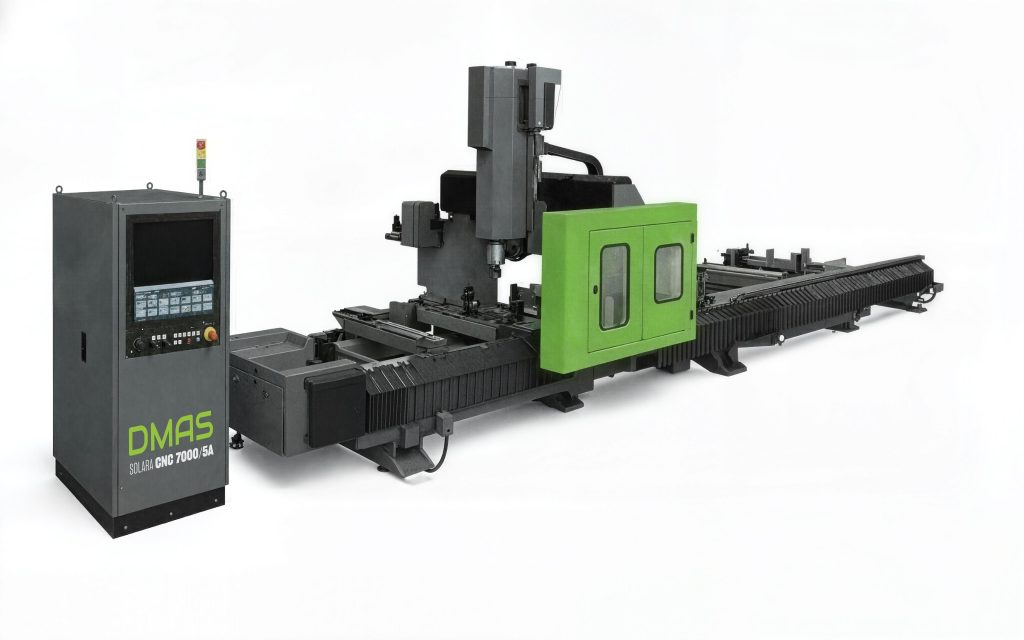

Developed for comprehensive aluminum profile processing, this advanced system integrates milling, tapping, drilling, and slotting operations to perform complex tasks such as launder cutting, mounting hole creation, locking slot machining, and other precision openings.
Engineered for the production of diversified curtain walls and aluminum doors and windows, it adapts seamlessly to varying profile geometries and architectural requirements.
Featuring a 5-axis high-speed CNC configuration, the system enables multi-directional machining without repositioning, ensuring faster cycle times, superior accuracy, and optimized productivity—a perfect solution for high-demand aluminum fabrication lines.
Item |
Specification |
|---|---|
| Table area (L × W) | 6500 × 1200 mm |
| T-slot | 7 × 22H7 mm |
| Height of workpiece table | 735 mm |
| Spindle motor power (S1/S6) | 15 / 17 kW |
| Maximum spindle torque | 13.5 N·m |
| Maximum spindle speed | 18,000 r/min |
| X / Y / Z axis movement range | 6500 / 1520 / 600 mm |
| Distance spindle nose to worktable | 0 – 600 mm |
| B-axis swing range | ±185° |
| C-axis rotation range | ±320° |
| Processing range | — |
| X direction (vertical/horizontal, excl. tool) | 6500 / 6400 mm |
| Y direction (vertical/horizontal) | 1200 mm |
| Z direction (vertical/horizontal, excl. tool) | 600 / 560 mm |
| X / Y / Z rapid traverse rate | 50 / 30 / 20 m/min |
| X / Y / Z feed motor torque | 18.6 × 2 / 11.5 / 11.5 N·m |
| B / C axis rotation speed | 166.7 / 191.7 °/s |
| B / C axis continuous output torque | 320 / 670 N·m |
| Tool magazine capacity | 12 pcs |
| Maximum tool length | 150 mm |
| Air supply pressure | 6 – 7 kgf/cm² |
| Air consumption | 240 L/min |
| Net weight of machine | 13,500 kg |
Imported high-precision dual swing head equipped with a high-power, high-speed electric spindle.
The HSK63F spindle interface provides exceptional rigidity and superior metal removal rates per unit time.
Driven by Taiwan’s latest CNC control platform, featuring an intuitive interface and powerful 5-axis RTCP control for complex contour machining.
All CNC units communicate through an M4 bus system, ensuring high-speed data exchange and exceptional operational stability.
The workbench is constructed from high-strength cast iron, while the bed, beam, slide, and ram are made from precision-welded steel components.
Finite Element Analysis (FEA) optimizes the stiffness-to-weight ratio, delivering outstanding static, dynamic, and thermal stability.
Equipped with eight pneumatic clamps and an optional cast-iron T-slot worktable, allowing flexible fixture placement and easy workpiece installation for diverse processing needs.
Includes a water-cooling circuit for the spindle, automatic feed lubrication, and a tool spray cooling system to maintain consistent accuracy and reliability during long production runs.
Features a 12-station rotary tool magazine for automatic tool changing, reducing downtime and maximizing machining efficiency.
