SPECTRA CNC 550DH

Precision Cutting Systems

Double-head Precision Cutting Saw

SPECTRA Series

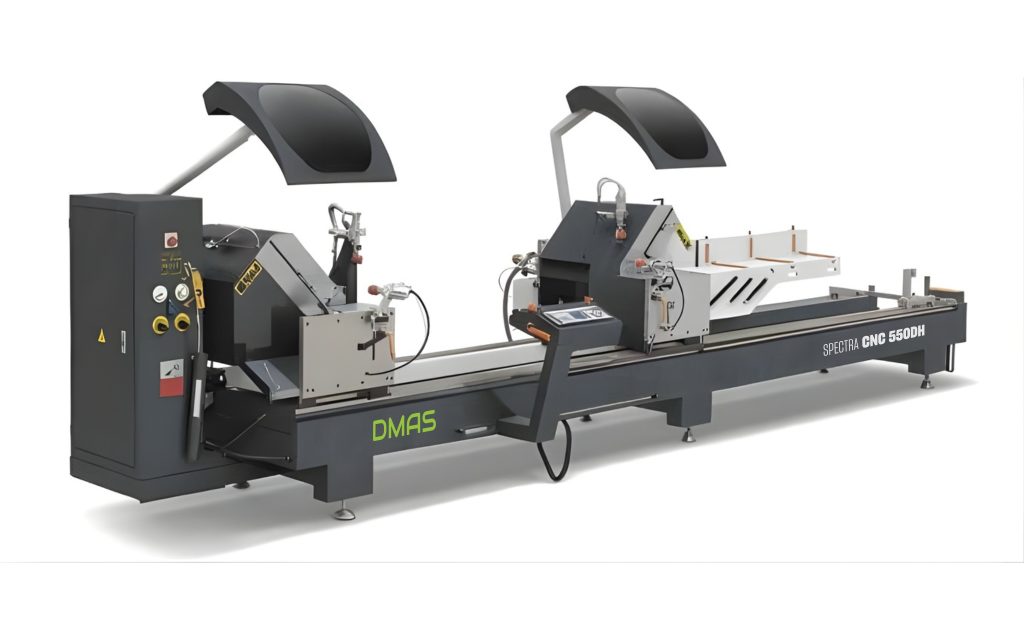

SPECTRA CNC 550DH

Designed for precision cutting of aluminum profiles at 45° and 90°, this machine features an industrial-grade CNC control system that automatically detects and measures material height, ensuring superior cutting accuracy and easy operation.

The integrated CNC software supports both ultra-long and ultra-short cutting modes, delivering greater flexibility to accommodate a wide range of production requirements with efficiency and precision.

Find out More

CNC 550DH

Specification

Value
Power Supply 380 V / 50 Hz
Cutting Motor Power 2 × 3.0 kW
Motor Speed 2800 rpm
Working Air Pressure 0.5 – 0.8 MPa
Air Consumption 50 L / min
Blade Specification Ø550 × Ø30 × 4.4 mm
Z 144
Cutter Feeding Speed 0 – 3 m / min
Cutting Length 400 – 5000 mm
Cutting Width (45°) 170 mm
Cutting Height (45°) 160 mm
Cutting Angle 45° / 90°
Overall Dimensions (L × W × H) 5800 × 1750 × 1250 mm

Technical Features

Automatic Material Height Measurement

Enables fast and accurate detection of material height for efficient setup and cutting operations.

Flexible Cutting Modes

CNC program supports ultra-long and ultra-short cutting functions to meet diverse production needs.

High-Precision Feeding System

Equipped with imported linear guide rails ensuring stable motion, high precision, and smooth operation.

User-Friendly CNC Control

Simplified CNC interface allows operation via digital display with minimal technical requirements for operators.

Adjustable Upper Pressing Device

Independent air pressure regulation guarantees stable clamping and precise cutting accuracy.

Automatic Lifting Pallet

Integrated pallet system automatically lifts and lowers to streamline material handling and improve workflow efficiency.
