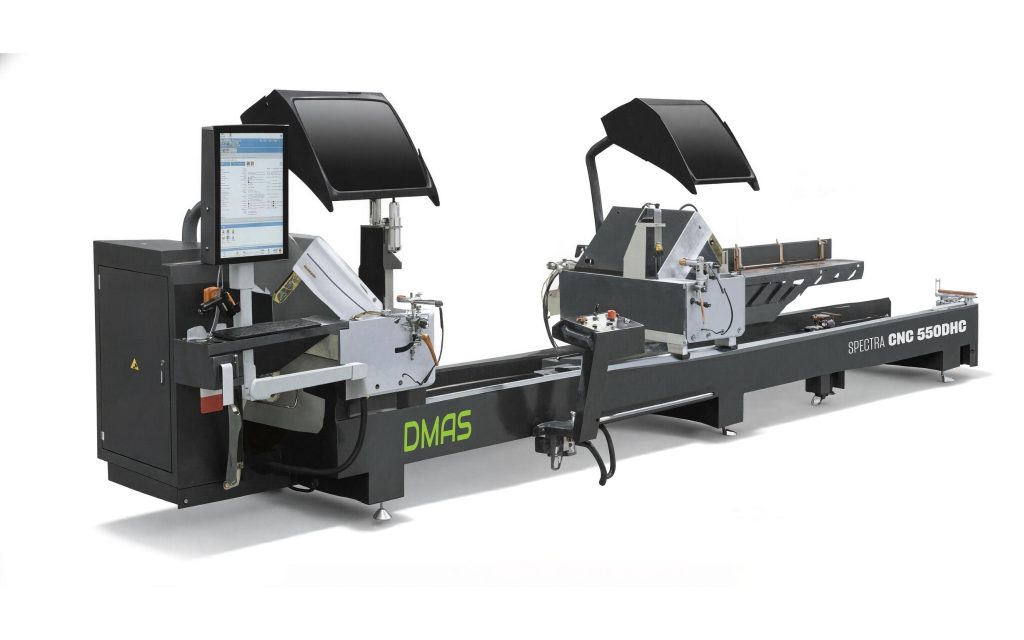

Designed for precise cutting of aluminum profiles at 45° and 90°, this machine features an integrated CNC control system fully compatible with door and window optimization software.
Cutting parameters and programs can be seamlessly imported via barcode scanning, wireless data transfer, or USB storage devices, providing flexible connectivity and ensuring efficient workflow integration across your production line.
Specification |
Value |
|---|---|
| Power Supply | 380 V / 50 Hz |
| Cutting Motor Power | 2 × 3.0 kW + 0.75 kW @ 2800 rpm |
| Working Air Pressure | 0.5 – 0.8 MPa |
| Air Consumption | 50 L / min |
| Blade Specification | Ø550 × Ø30 × 4.4 mm |
| Z | 144 |
| Cutter Feeding Speed | 0 – 3 m / min |
| Cutter Moving Speed | 0 – 20 m / min |
| Cutting Length | 370 – 4200 mm |
| Sawing Size Range | 45° Cut: 170 × 145 mm 90° Cut: 170 × 200 mm |
| Cutting Angle | 45° – 90° |
| Overall Dimensions (L × W × H) | 5800 × 1750 × 1250 mm |
Equipped with an industrial control system compatible with door and window optimization software for intelligent and user-friendly operation.
Fully automated process requiring no skilled labor, improving production efficiency and solving recruitment challenges.
Servo-driven system with integrated label printing and barcode scanning for accurate length positioning and product traceability.
Dual cutting dies with adjustable upper pressing units ensure precise cuts across different materials.
Rear pallet automatically lifts and lowers according to the cutting head position, enhancing material handling efficiency.
