VECTRA 200A

Precision Cutting Systems

Automatic End-milling Machine

VECTRA Series

VECTRA 200A

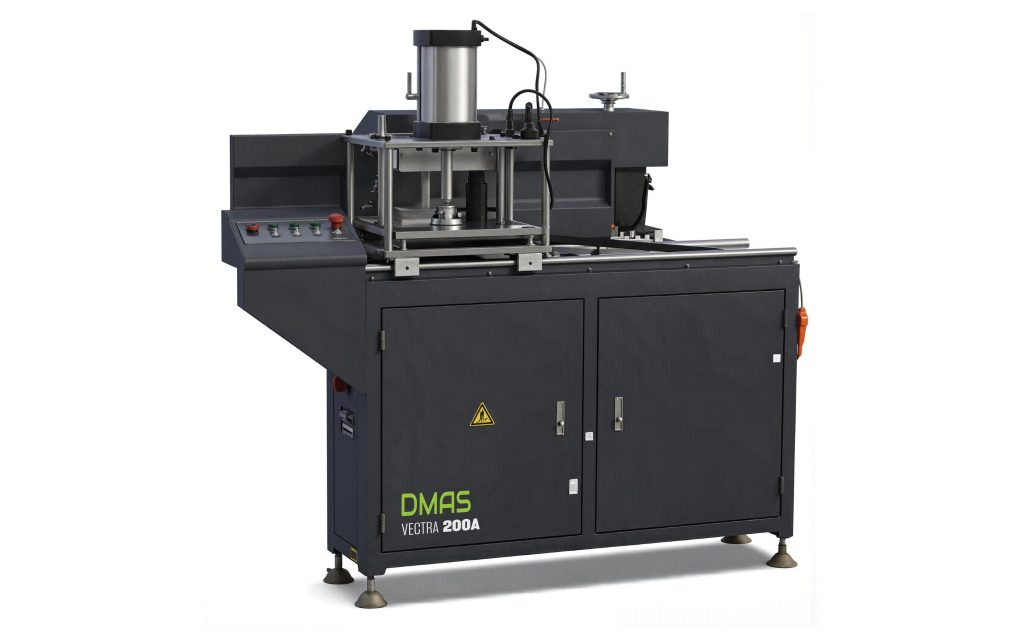

The DMAS Automatic End Milling Machine is designed for high-precision forming of aluminum profile end faces, step faces, and grooves.

The adjustable milling cutter system moves up, down, left, and right, adapting effortlessly to profiles of different shapes and dimensions. Controlled by an automatic feed and positioning system, the machine ensures uniform milling depth, smooth surface finish, and exceptional repeatability.

Engineered for flexibility and reliability, the DMAS Automatic End Milling Machine delivers precise, stable, and efficient performance, making it ideal for small and medium-sized workshops.

Find out More

VECTRA 200A

Item

Specification
Power Supply380 V / 50 Hz
Motor Total Power2 × 2.2 kW
Working Air Pressure0.4 – 0.8 MPa
Motor Rotary Speed2800 rpm
Main Axis DiameterΦ 32 mm
Milling Tools DiameterΦ 16 – 200 mm
Cutter Adjustment Range0 – 100 mm
Worktable Size200 × 260 mm
Worktable Feeding Stroke700 mm
Max. Open Tenon Size40 mm
Overall Dimensions1450 × 800 × 1500 mm
WeightApprox. 400 kg

Technical Features

Adjustable Tool System

The cutting tool can be adjusted vertically and horizontally, allowing precise adaptation to profiles of different shapes and sizes.

Versatile Cutter Design

Adjustable cutting tools eliminate the need for custom tooling when switching between profile types, reducing setup time and overall production costs.

High-Performance Cutting

Equipped with milling tools up to Ø200 mm in diameter, enabling high cutting speeds, smooth operation, and superior surface quality on machined profiles.

Stable Feed System

The intake system adopts a gas–liquid damping mechanism, providing steady, controlled motion for enhanced reliability and consistent milling precision during continuous production.
